DONGFENG 35 SEATS MIDDLE BUS

  • DONGFENG 35 SEATS MIDDLE BUS
  • DONGFENG 35 SEATS MIDDLE BUS
  • DONGFENG 35 SEATS MIDDLE BUS

DONGFENG 35 SEATS MIDDLE BUS

    Payment Type: L/C,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,CIP
    Min. Order: 1 Others
    Delivery Time: 30 Days
    Packaging: Rude
    Productivity: 30 units per month
    Brand: DONGFENG
    Transportation: Ocean,Land
    Place of Origin: China
    Supply Ability: 300 units per month
    Certificate: ISO
    Port: Shanghai

Basic Info

Model No.: DF middle bus

Product Description

Dongfeng 35 seats coach Bus

VEH I

CLE整车

Length (mm) 长

7920

E

N

G

I

N

E发动机

Model

型号

YC4EG160-50

Width (mm)宽

2430

Height (mm)高

3060

Manufacturer

制造商

YUCHAI

Position/fuel

位置/燃油

Front settled/ diesel

前置/柴油

Wheel base (mm)轴距

3800

Type

发动机型式

In-line, four cylinders, turbocharged, inter-cooling 直列,4缸,增压中冷、四冲程、直喷

front/rear Overhang (mm) 前/后悬

1800/2320

Rated output (kw) 额定功率

Approaching/Departure angle (mm) 接近角/离去角

15/10

Max. torque (N.m)

最大扭矩

111*120

Displacement(ml)

排量

4800

G.V.W (kg)厂定总质量

9400

Bore × Stroke (mm)

缸径X行程

Seat capacity座椅数

35座

Emission standard 排放

Euro-V

Max. speed (km/h)

最高车速

100

Volume of luggage compartment (m3)

后行李舱容积

2.7m3

One Step Height

一级踏步高

400mm

Item项目

Standard allocation标准配置

CHAS

S

I

S底盘参数及配置

Chassis model底盘型号

Dongfeng Chassis东风底盘

Gear box

变速箱

6DS60T 法士特手动六档箱

Clutch

离合器

φ380, Single plate, dried, diaphragm spring, clutch booster

φ380单片、干式、膜片弹簧,离合助力

Front axle

前桥

Dongfeng axle (4T)

东风桥(4T)

Rear axle

后桥

Dongfeng axle (7T)

东风桥(7T)

Suspension

悬架

Steel plate spring 板簧悬架

Front 11/ Rear 12 前11后12

Steering转向

Power assisted steering 动力转向

Brake

制动

Dual circuit air pressure brake、energy storage spring brake, Engine EXHAUST Breaks

双回路气压制动、储能弹簧制动、排气制动

Fuel Tank油箱(L)

200L

Tires轮胎

9R22.50

Batteries/Alternator

蓄电池/发电机

空调车适用

Others

其他

铜水箱、空滤、自调臂、ABS

BODY

车身

主要

总成

内饰

Interiors

空调内饰、车内装一排扶手带吊环

Both sides luggage rack

Doors

车门

Front settled pneumatic out-swing passenger door 、driver‘’s door

前置气动外摆乘客门+司机门

Side windows

侧窗

Push-pull window for the bottom part; splice window for the upper part green color

上固定下推拉;颜色浅绿

Windscreen

风挡

Front & Rear : laminated glass & toughened glass

前挡夹胶后挡钢化玻璃

Rear view system

后视系统

Rabbit ear-type reversing mirror,common inner rearview mirror

兔耳倒车镜、普通内后视镜

Conditioning

空调系统

Dongfeng Pannico roof-mounted AC

东风派恩顶置空调

暖风系统

Hot wind system

No

除霜器Defroster

调档除霜器 24V,170W

Video system

视听系统

Mp3 Radio-cassette Player with U disk and SD card connector;

Mp3 收放机(带U盘接口、SD卡接口)

Lights灯具

Front and rear combined headlight, top mounted stop lamp

前后组合灯具、高位刹车灯

Rain wiper 雨刮器

Bi-direction electric rain wiper对刮式电动雨刷器

Seats

座椅

2+2 seats layout, standard 35 seats, general seats;

2+2布置、35座、普通座椅,

Paint油漆

可指定颜色图案

Others

其他

High-Low floor; Anti-sliding floor, plate floor with none-sinking type rear luggage compartment, electronic clock with temperature display, half-roll front abat vent, fire extinguisher(4kg)X1, safety hammerX2, DC816A skylight, Air horn, emergency switch for passenger door,drivers fan, tyres cover; tools accessories;

高低地板、防滑地板革、带温度显示电子钟、半幅前遮阳1个灭火器4kg、2把安全锤、700A型天窗、气喇叭、乘客门应急开关、司机电扇、工具箱、全车安全带、LED电子路牌

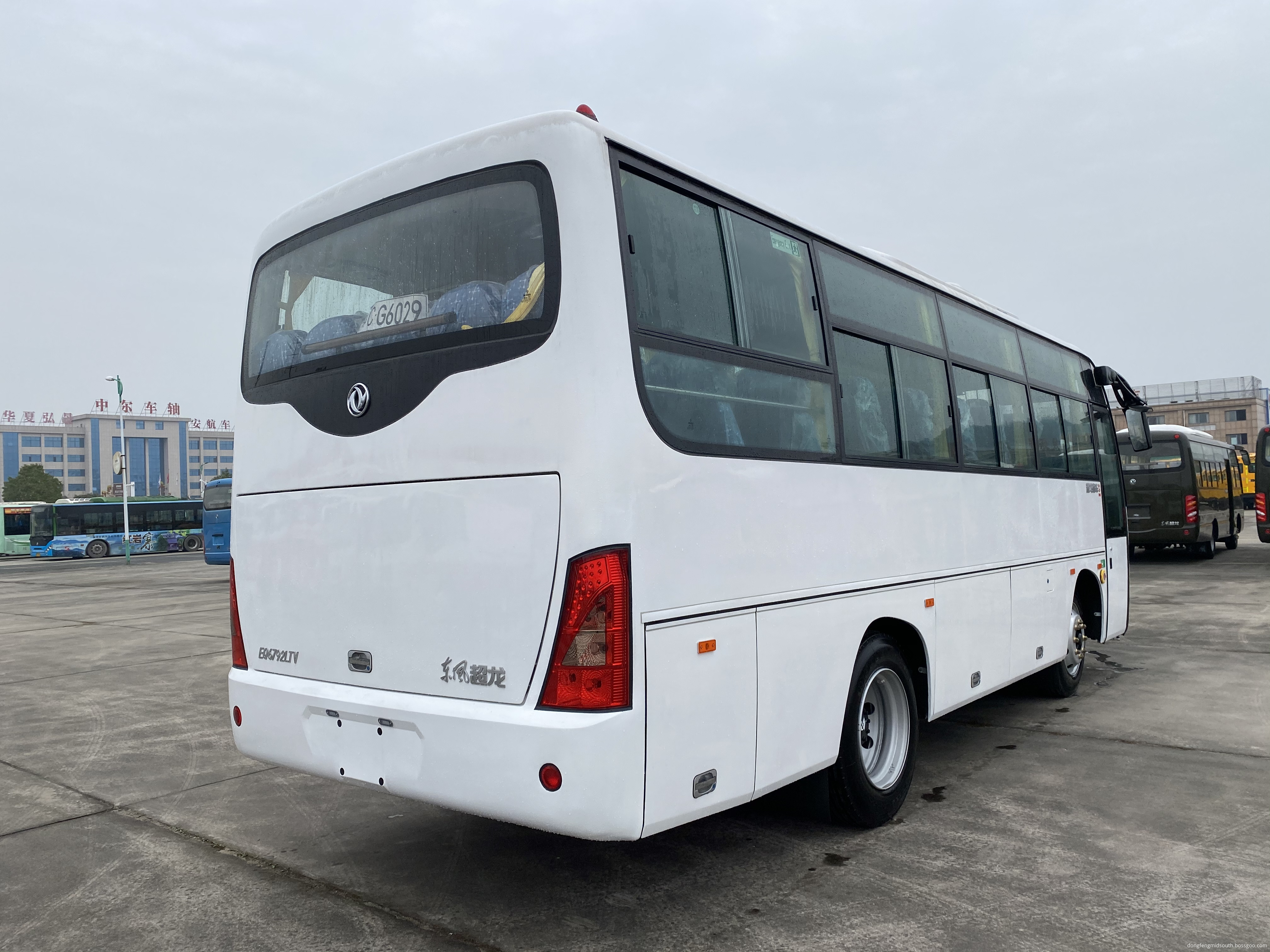

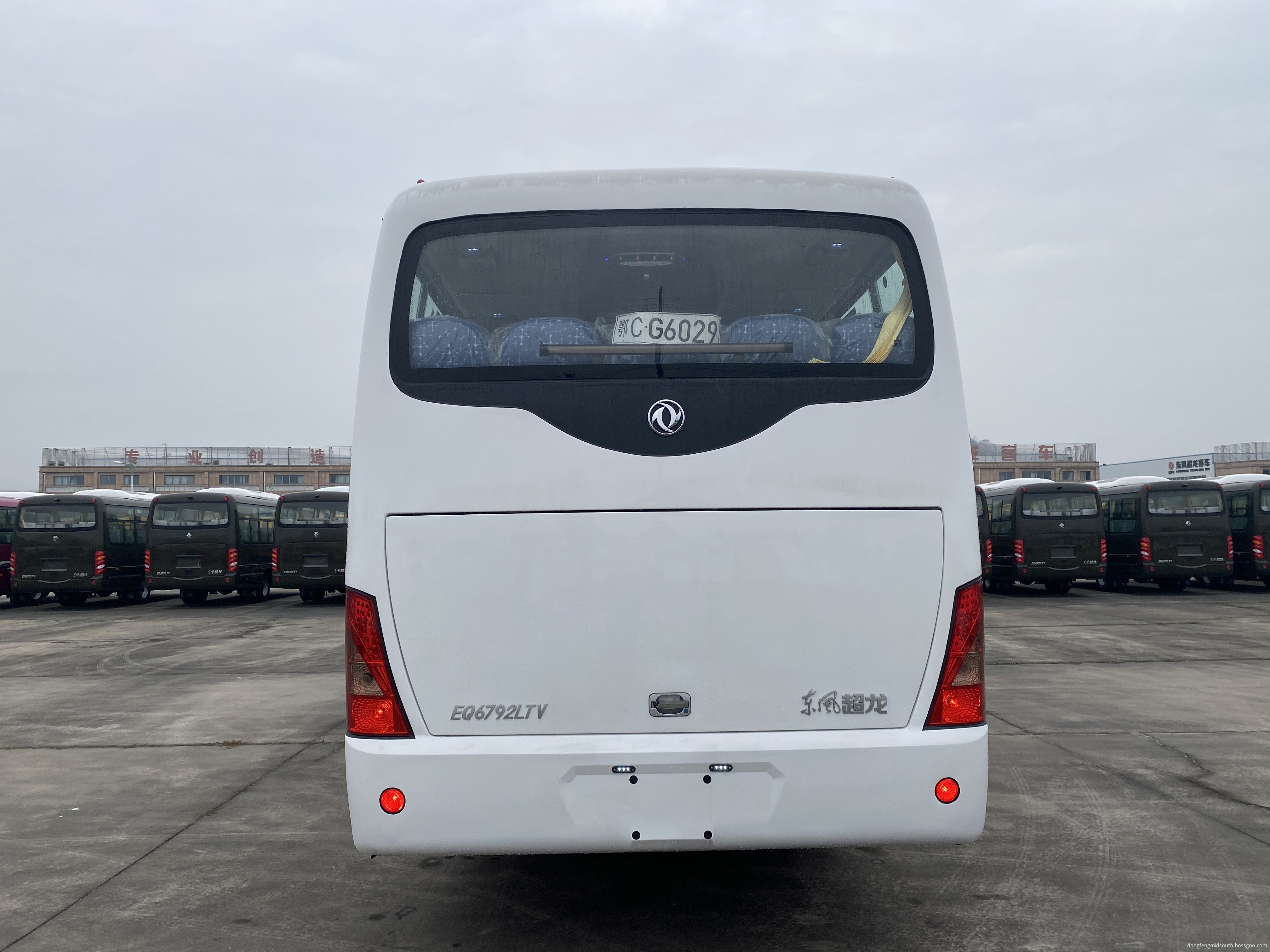

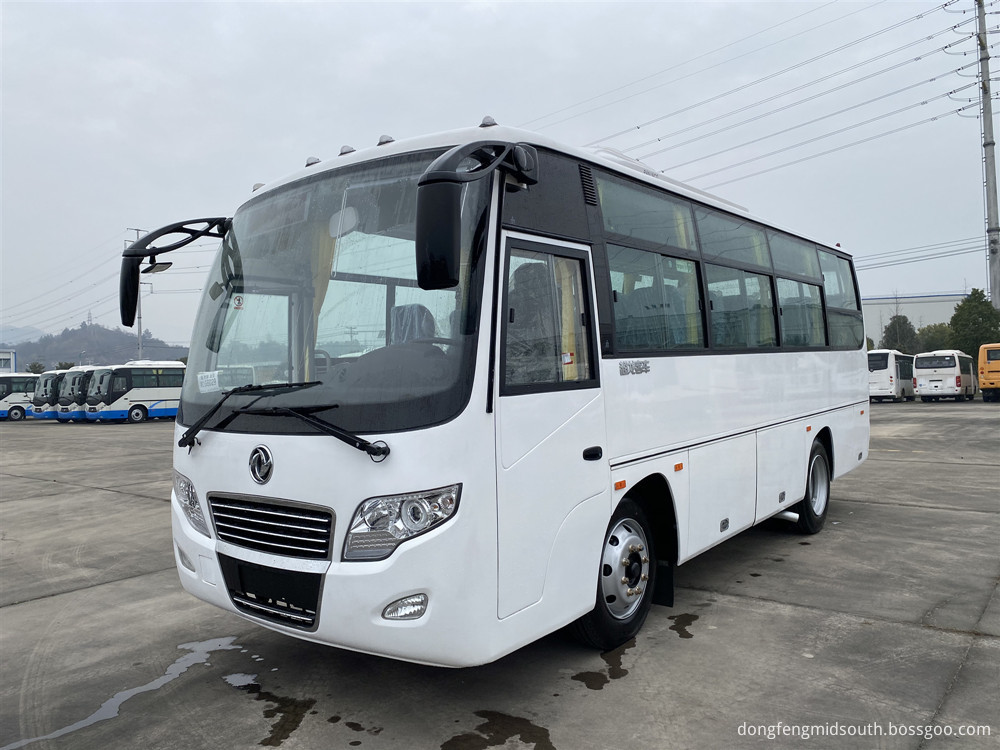

Dongfeng 35 seats coach bus (7)Dongfeng 35 seats coach bus (15)Dongfeng 35 seats coach bus (20)Dongfeng 35 seats coach bus (4)
